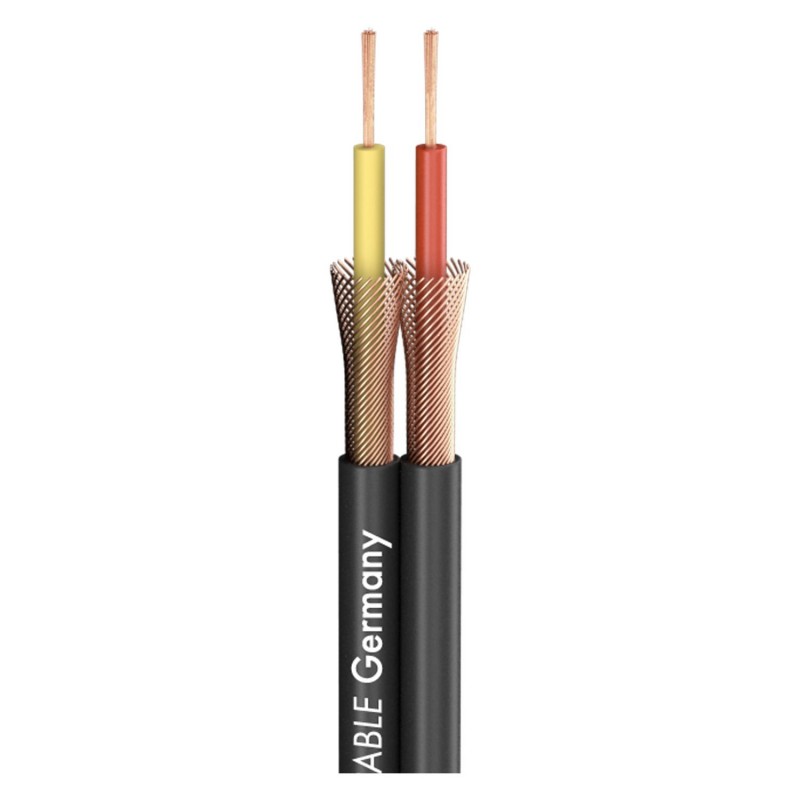

S-320-0061

View larger

Reference: KABELL SINJALI DUAL

MODEL: S-320-0061

MARKA: SOMMER-CABLE

PERSHKRIMI: KABELL SINJALI AUDIO DUAL

Kontakt: 0692088111

Email: [email protected]

Article number:	320-0061
Name:	SC-Onyx 2008
EAN:	4049371004695
Properties:	Analog, OFC oxygen free copper
Application area:	Installation, Studio / Broadcast
Application:	Patch & Instrument Cable
Colour:	black
Signal transmission:	asymmetrical
Construction:	LI2YDY2x0,08mm²
Jacket material:	PVC
Number of Channels (audio):	2
Inner conductor (audio):	1
Inner conductor (audio) [mm²]:	0,08
Inner conductor (audio) [sqin]:	0.0001
Inner conductor Ø (audio) [mm]:	0,32
Inner conductor Ø (audio) ["]:	0.0126
AWG (audio):	28
Shielding:	Copper spiral shielding
Shielding factor [%]:	90
Copper strands (audio):	10
Copper strand Ø (audio) [mm]:	0,10
Copper strand Ø (audio) ["]:	0.0039
Conductor insulation material:	PE-HD
Weight per 1 m [g]:	27
Weight at 1000 ft. [lbs]:	17.4958
UV-resistant:	yes
Fire load per m [kWh]:	0,2
Style variant:	twin
Packing:	100 m spool
Temperature min. [°C]:	-20
Temperature max. [°C]:	70
Width [mm]:	5,9
Width ["]:	0.2323
Height [mm]:	2,6
Height ["]:	0.1024
Capac. cond./shield. per 1 m (audio) [pF]:	120
Capacity wire/electic screen at 1 ft. (audio) [pF]:	36.576
Insulation resist. per 1 km [GΩ]:	1
Insulation resist. per 1000 feet [GΩ]:	0.3048
Insulation resist. per 1 km (audio) [GΩ]:	1
Insulation resist. per 1000 feet (audio) [GΩ]:	0.3048
Conductor resistance per 1 km [Ω]:	220
Conductor resistance per 1000 ft. [Ω]:	67.056
BPVo-Euroclass:	Fca
