S-320-0101

S-320-0061 View larger

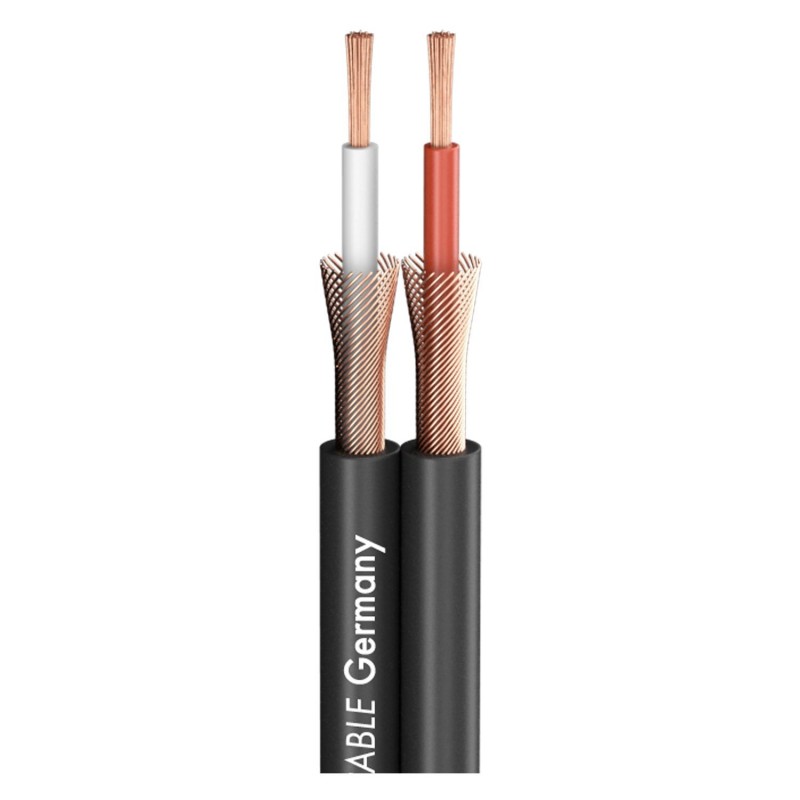

KABELL SINJALI DUAL

MODEL:  S-320-0101

MARKA: SOMMER-CABLE

PERSHKRIMI: KABELL SINJALI AUDIO DUAL

PROFESIONAL

Installation, Studio / Broadcast

FACEBOOK:

INSTAGRAM:

Kontakt: 0692088111

Email: [email protected]

More details

290 Leke tax excl.

More info

Article number: 320-0101
Name: SC-Onyx 2025 MKII
EAN: 4049371003292
Properties: Analog, OFC oxygen free copper
Application area: Installation, Studio / Broadcast
Application: Patch & Instrument Cable
Colour: black
Signal transmission: asymmetrical
Construction: LI2YDY2x0,25mm²
Jacket material: PVC
Number of Channels (audio): 2
Inner conductor (audio): 1
Inner conductor (audio) [mm²]: 0,25
Inner conductor (audio) [sqin]: 0.0004
Inner conductor Ø (audio) [mm]: 0,56
Inner conductor Ø (audio) ["]: 0.022
AWG (audio): 24
Shielding: Copper spiral shielding
Shielding factor [%]: 90
Copper strands (audio): 32
Copper strand Ø (audio) [mm]: 0,10
Copper strand Ø (audio) ["]: 0.0039
Conductor insulation material: PE
Weight per 1 m [g]: 38
Weight at 1000 ft. [lbs]: 25.5708
UV-resistant: yes
Fire load per m [kWh]: 0,23
Style variant: round
Packing: 100 m spool
Temperature min. [°C]: -20
Temperature max. [°C]: 70
Width [mm]: 8,3
Width ["]: 0.3268
Height [mm]: 3,8
Height ["]: 0.1496
Capac. cond./shield. per 1 m (audio) [pF]: 120
Capacity wire/electic screen at 1 ft. (audio) [pF]: 36.576
Insulation resist. per 1 km [GΩ]: 1
Insulation resist. per 1000 feet [GΩ]: 0.3048
Insulation resist. per 1 km (audio) [GΩ]: 1
Insulation resist. per 1000 feet (audio) [GΩ]: 0.3048
Conductor resistance per 1 km [Ω]: 115
Conductor resistance per 1000 ft. [Ω]: 35.052
BPVo-Euroclass: Fca
