EVID-EC4.2
New
View larger
View larger

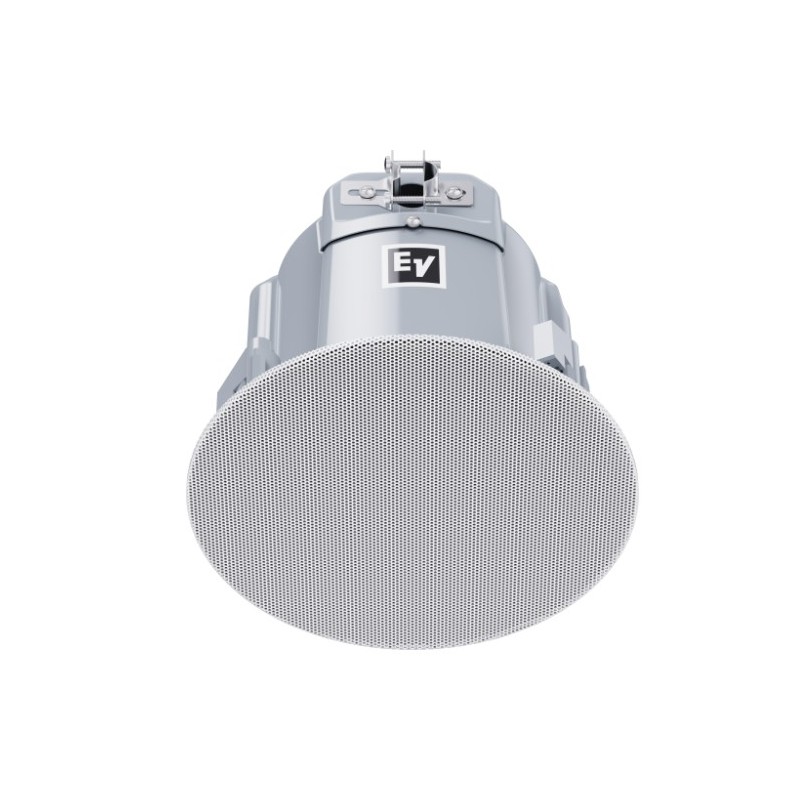

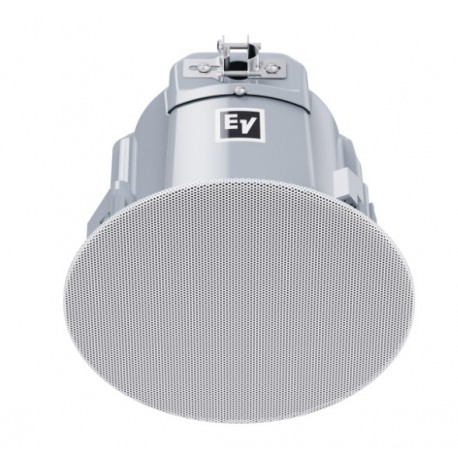

BOKSE TAVANI
MODEL: EVID-EC4.2
MARKA: Electrovoice
PERSHKRIMI:
BOKSE PER TAVAN TE VARUR
MAGNETIK GRILL & LUXURY DESIGN
4" 2-WAY 40 watt RMS ME SISTEM 100V
MAP: KLIKONI PER ADRESEN:
Kontakt: 0692088111
Email: [email protected]
This product is no longer in stock
More info
| Frequency range (-10 dB) (Hz) 1 | 80 Hz – 2,0000 Hz |
| Maximum SPL (continuous) (dB) 2 | 106 dB |
| Maximum SPL (peak) (dB) 2 | 112 dB |
| Sensitivity (1 W, 1 m) 3 | 89 dB SPL 1 W, 1 m |
| Coverage angle conical (°) | 130° |
| Power handling (continuous) (W) 4 | 50 W |
| Power handling (peak) (W) 4 | 200 W |
| Long term power handling (continuous) (W) 5 | 40 W |
| Long term power handling (peak) (W) 5 | 160 W |
| Nominal impedance (Ω) (Low Z) | 8 Ω |
| Recommended high pass (Hz) 6 | 90 Hz |
| Transformer taps 70 V line (W) | 20 W; 10 W; 5 W; 2.5 W; 1.25 W |
| Transformer taps 100 V line (W) | 20 W; 10 W; 5 W; 2.5 W |
| LF transducer size (in) | 4 in |
| HF transducer size (in) | 0.75 in |
| Material | Steel |
| Grille material | Powder coated steel |
| Connector type | 4-pin Euroblock Input + Pass through |
| Wire size (AWG) | 12AWG (maximum) |
| Wire diameter (mm2) | 3.3 mm2 (maximum) |
| Color | White; Customized colors |
| Color (RAL) | RAL 9003 Signal white |
| Mounting cutout (in) | 7.20 in |
| Mounting cutout (mm) | 183 mm |
| Dimensions (Ø x D) (in) | 8.4 in x 6.5 in |
| Dimensions (Ø x D) (mm) | 212 mm x 163.4 mm |
| Mounting depth (in) | 6.2 in |
| Mounting depth (mm) | 158 mm |
| Ceiling thickness (in) | 0.5 in - 1.5 in |
| Ceiling thickness (mm) | 12.5 mm - 38 mm |
| Weight (lb) 7 | 5.7 lb |
| Weight (kg) 7 | 2.6 kg |
| Shipping weight (lb) 8 | 15.4 lb |
| Shipping weight (kg) 8 | 7 kg |
| IP rating | IP34 |
| Weatherization | Indoor |
