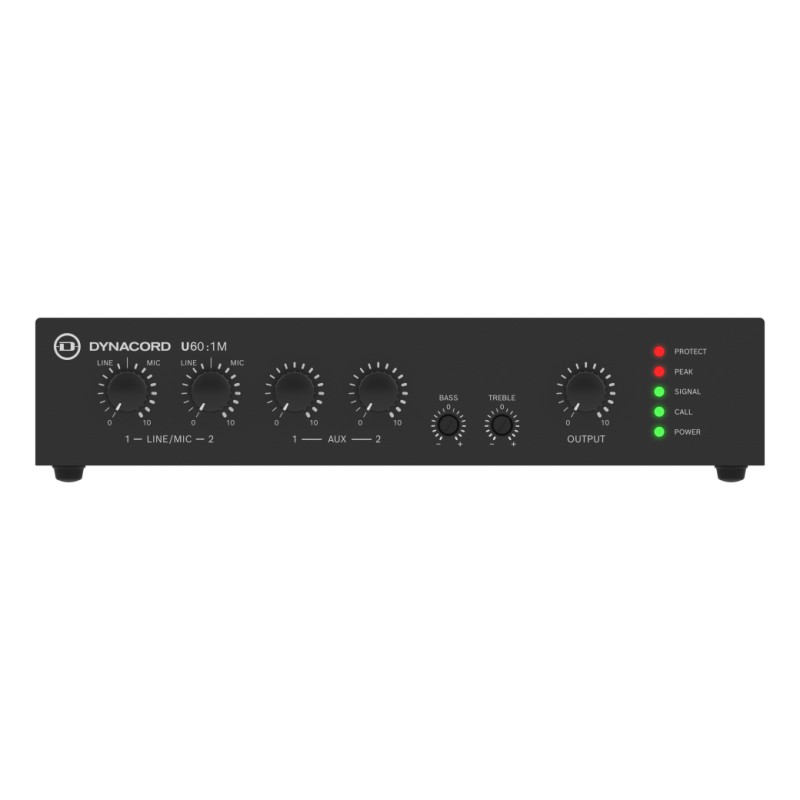

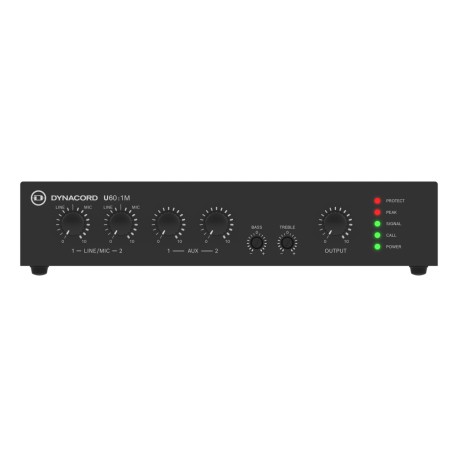

U60-1M 100V

New

View larger

Reference: AMPLIFIKATOR 100V 60WATT

MODEL: U60-1M 100V

MARKA: DYNACORD

PERSHKRIMI: PUBLIC ADRESS AMPLIFIERS

2 MIC IN, 2 LINE IN, 100V 60W RMS

SISTEM 100V & 8 ohms

SPECIFIKIMET:

MAP: KLIKONI PER ADRESEN:

Kontakt: 0692088111

Email: [email protected]

This product is no longer in stock

Full power output supporting 4Ω, 8Ω, 70 V and 100 V
EMG override input, ensuring critical messages are heard clearly
Contact override with 2-tone chime for attention-grabbing alerts
120 Hz high-pass filters to customize audio output and eliminate unwanted low-frequency noise
Space-saving compact ½ rack design, providing versatility without compromising performance
Remote activation of standby mode with Remote OFF (Stand by), enhancing energy efficiency

Specifications

Electrical
Mains power supply
Voltage	100 VAC - 240 VAC, 50/60 Hz
Power	100 VA
Consumption	Standby (Remote OFF active) 1.25 W Idle mode 10 W / 12 W
Remote power (ON/OFF Stand by)	2-pin, Eurostyle, contact closure
Performance
Frequency response, -3 dB ref. 1 kHz
Any input to output	<10 Hz — 22 kHz
Distortion	<1% @rated output power, 1 kHz
Output stage topology	Class D
Equalization
Bass shelving	±12 dB / 150 Hz — 3 dB (100 Hz)
Treble shelving	±12 dB / 5 kHz — 3 dB (10 kHz)
Filter
LO-CUT permanently	f=20 Hz, 12 dB/oct.
LO-CUT switchable, can be activated	f=120 Hz, 12 dB/oct.
