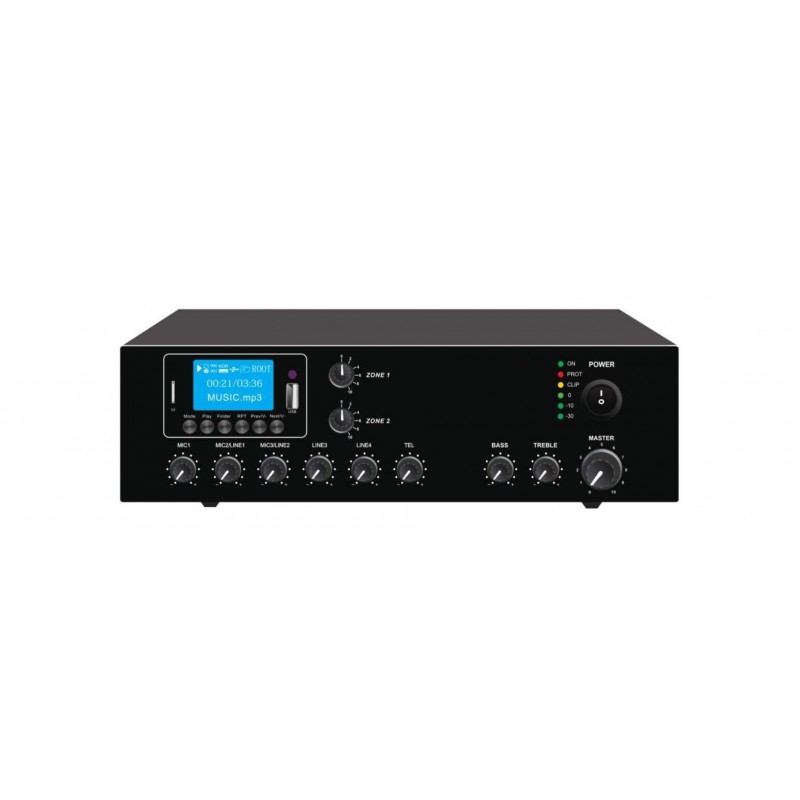

AV-120TW 2 ZONE

New

View larger

Reference: AMPLIFIKATOR 100V 60W

MODEL: AV-120T

MARKA: AR-PRO

PERSHKRIMI: PUBLIC ADRESS AMPLIFIERS DUAL ZONE

2 Zone 120W Mixer Amp with USB/SD/FM/Bluetooth,

3 Mic, 2 Aux,70V/100V/4-16 Ohm.

MAP: KLIKONI PER ADRESEN:

Kontakt: 0692088111

Email: [email protected]

Mixer Amplifier with USB/SD/FM/Blue Tooth

AV-120

Feature:

Compact mini size public address amplifier

Tabletop mixer amplifier with Mp3 player, FM radio & blue tooth

Rate power output at 30W, 60W to 120W

Speaker output of 100V or 70V & 4 Ohm-8 Ohm-16 Ohm

Mp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FM radio and blue tooth

LED indicators for power, clip, protect and signal

Mic1 of balanced XLR input with dipswitch of phantom power on/off & highest VOX priority on/off

Mic/line 2-3 switchable input unbalanced 6.3mm jack

Line 1-2 input of RCA input and one RCA line output

Telephone input with secondary priority and MOH (Music on Hold)

Volume control for Mic1-3, line1-2, TEL, bass/treble and master

Complete amplifier protection includes short-circuit, clip, overload and high temp

230V AC & 24V DC both power supply system

Specification:

Model		AV-60	AV-120
Description	Mixer Amplifier with USB/SD/FM/Blue Tooth
Rated Power Output		60W	120W
Speaker Outputs	100V or 70V & 4 Ohm-8 Ohm-16 Ohm
Connector	Mic1 input by balanced XLR with phantom power & VOX highest priority Mic/line switchable input 2-3 unbalanced 6.3mm jack Telephone input with secondary priority and MOH (Music on Hold) Line1-2 inputs by RCA; Line output by RCA
Input	MIC1-3: 5-8mV, 600Ω; Line, 150-470mV, 10KΩ, unbalanced RCA
Line Out	0.775(0dBV)
Frequency Response	60Hz-15kHz(±3dB)
S/N Ratio	Line ≥ 85dB, Mic≥ 72dB
THD	Less than 0.5%
Protection	Short-circuit, clip, overload and high temp protection
Power Consumption	60W	100W	200W
Power Supply	230V AC & 24V DC; 50-60Hz
Dimension	320×210×90mm
Weight	3.6kg	4.1kg	4.7kg
