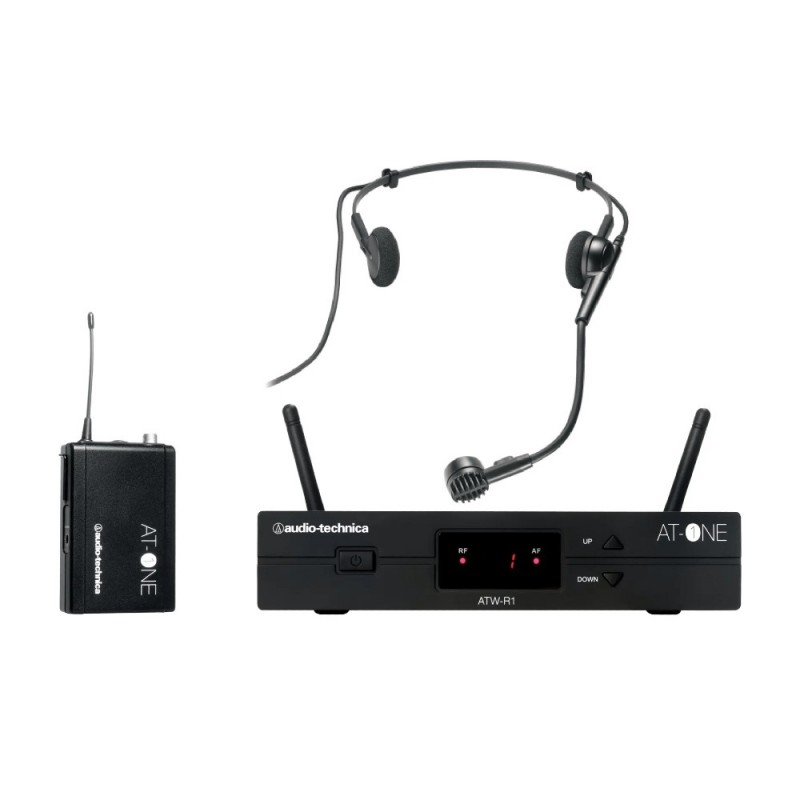

ATW-11DE3

Specifications:

• Operating Frequencies: DE3 Band: 482 – 512 MHz
• Number of Channels: 2 x 4 frequencies
• Frequency Stability: +/- 0.005%, Phase lock loop frequency control
• Modulation Mode: FM
• Frequency Response: 60 Hz – 16 kHz
• Operating Range: 60 m, typical
• Receiver System: Antenna switching diversity
• Dynamic Range: HH: 108 dB, BP 103 dB (@ max deviation)
• Sensitivity: 10 dBµV (S/N 60 dB @ 20 kHz deviation)
• Total Harmonic Distortion: <1% – 20 kHz deviation @ 1 kHz
• Audio Output Unbalanced: -2 dBV
• Audio Output Balanced: 4 dBV
• Output Connectors (Microphone): Balanced: XLRM-type
• Output Connectors (Instrument): Unbalanced: 6.3 mm mono jack
• Maximum Output Level: Mic / Line (0 / -20 dB)
• Antenna Input: BNC type, 50 – BIAS voltage 12V DC 100 mA each
• Dimensions (Receiver): 200 mm x 42 mm x 122 mm (W x H x D)
• Weight (Receiver): 418 g without accessories
• Accessories Included: AC Adapter, antennas, rack mount adapter, protective carrying case
• RF Power Output (Belt Pack): 10 mW
• Battery Life: 10 hours – depending on battery type and use pattern
• Dimensions (Belt Pack): 66 mm x 98 mm x 22 mm (W x H x D)
