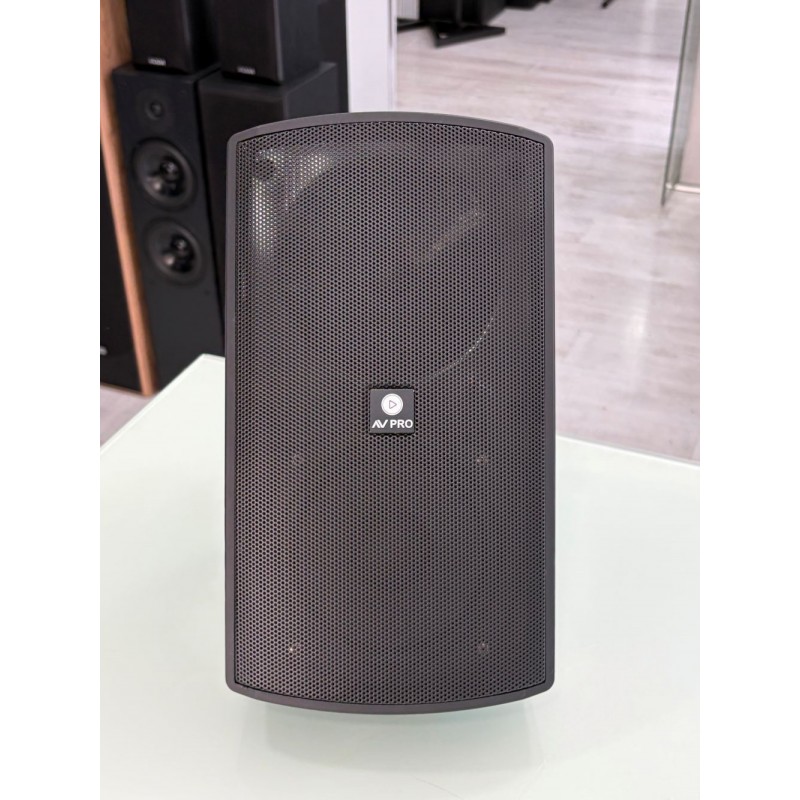

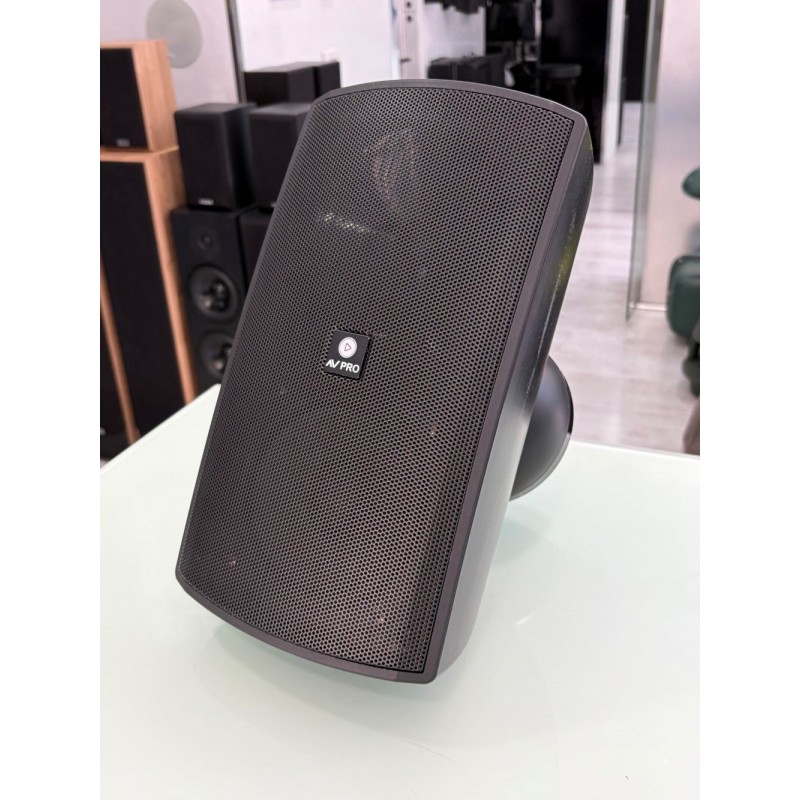

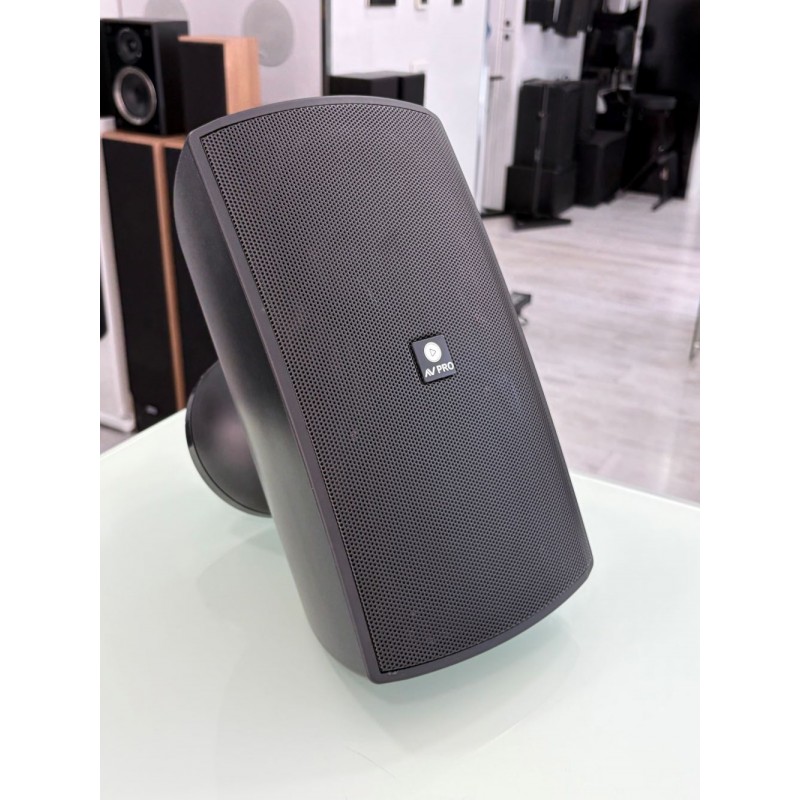

AVPRO-6

Technical specifications AVPRO-6 Peak Power handling 240W Program Power handling 120W Continuous power (AES) 60W Nominal impedance 8 Ω Sensitivity 1W/1m 89 dB Sound pressure Max W/1m 106 dB @ 8 Ω 105 dB @ 100V Frequency response ± 3dB 65 Hz - 20 kHz Dispersion Horizontal 1200 Vertical 1200 Connectors 2 x WAGO terminal block connections Drivers 6” MF / LF Woofer 1” Dome tweeter Line Transformer Tappings A 800 Ω 12.5W @ 100V 6.25W @ 70V B 400 Ω 25W @ 100V 12.5W @ 70V C 200 Ω 50W @ 100V 25W @ 70V D 100 Ω Not in use @ 100V 50W @ 70V Ingress Protection rating IP66
