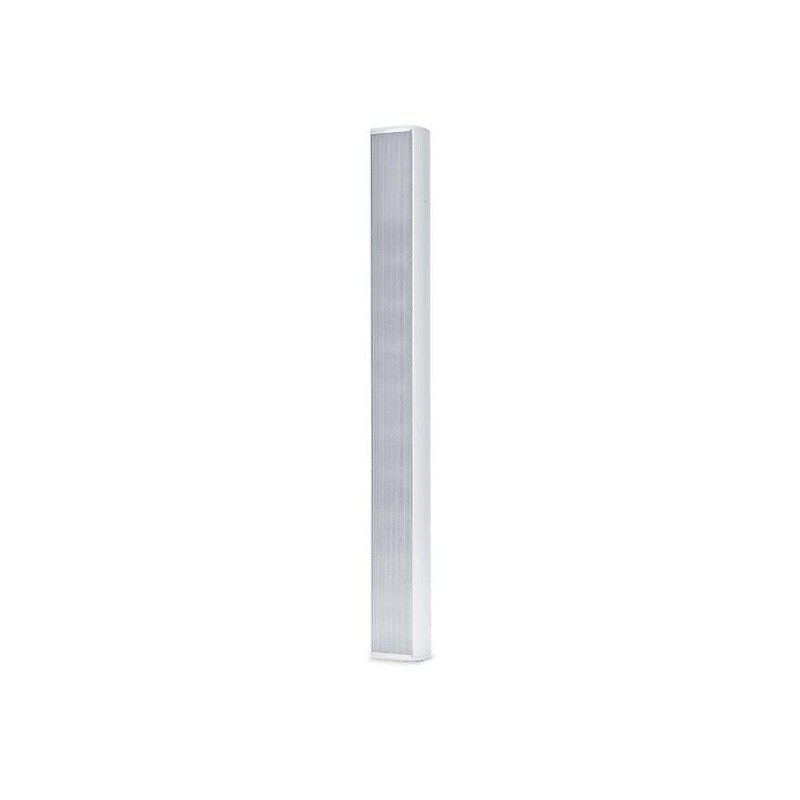

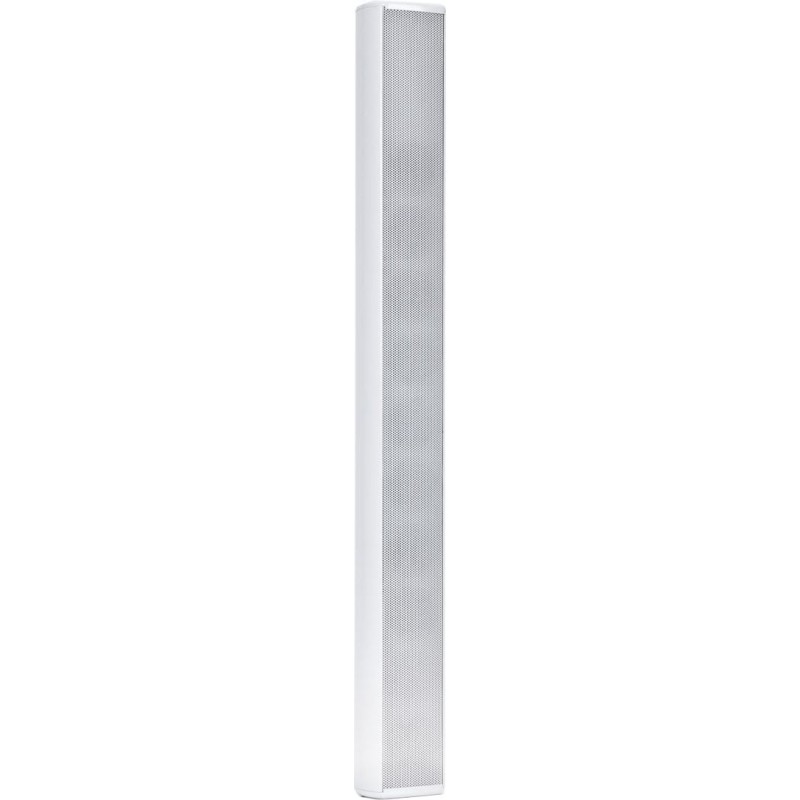

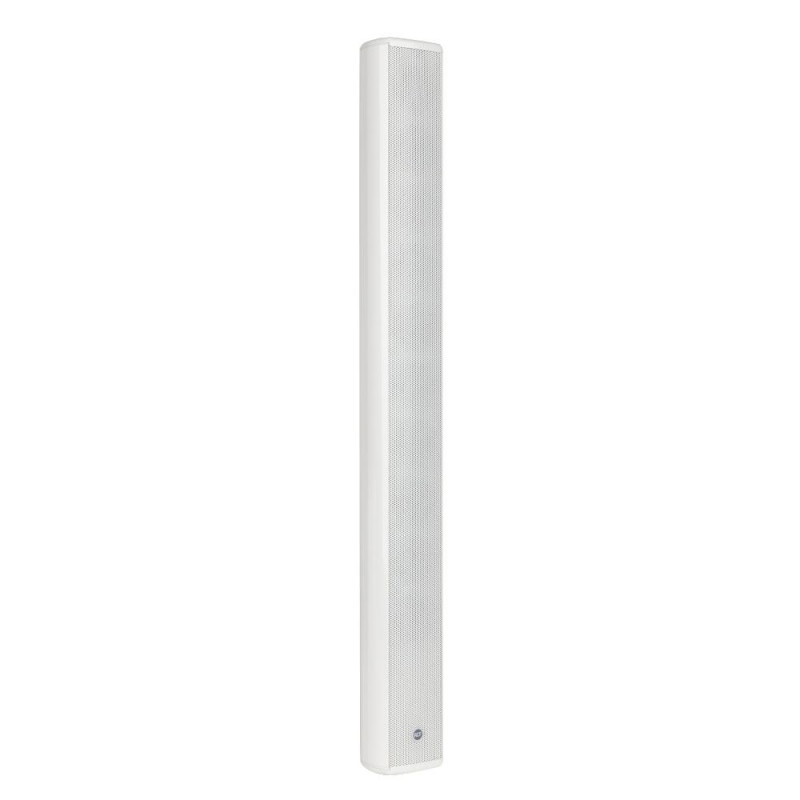

COLUMN SPEAKER

MODEL: CS 3082

MARKA: RCF

PERSHKRIMI: BOKSE PRO INSTALL

COLUMN SPEAKER SLIM LINE

30/60 WATT RMS/MAX 100V

MAP: KLIKONI PER ADRESEN:

Kontakt: 0692088111

Email: [email protected]

More details

28 000 Leke tax excl.

More info

  • Ideal for speech reproduction, shape designed to enable corner installation
  • Music power/RMS: 60/30W
  • Eight 50 mm (2") diameter extended range speakers and two tweeter 25 mm (1")
  • Body in extruded aluminium bake-painted RAL 9016 White and front metal grille RAL 9016 White, includes accessory for wall mounting
  • Built-in multi-tapped transformer (30 - 20 - 10 W) for 100 V constant voltage connection
  • 8 Ohm input that can be selected on the terminal block
  • Audio connection on screw terminal block
Acoustical specifications
Frequency Response (-10dB)
200 Hz - 20000 Hz
Max SPL @ 1m
106 dB
Horizontal coverage angle
180°
Vertical coverage angle
30°
System Sensitivity
91 dB
Power section
Nominal Impedance
8 ohm
Power Handling
30 W
Peak Power Handling
120 W PEAK
Transducers
Dome Tweeter
2 x 1.0''
Woofer
8 x 2.0''
Input/Output section
Input connectors
Screw Terminals
Output connectors
Screw Terminals
Constant Voltage Transformer
100 V
Power selection 1
30 W - 333 ohm
Power selection 2
20 W - 500 ohm
Power selection 3
10 W - 1000 ohm

Accessories
