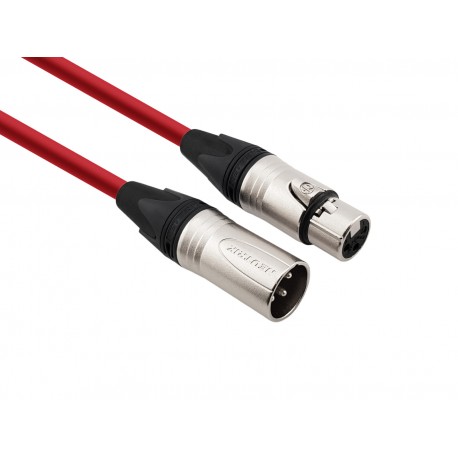

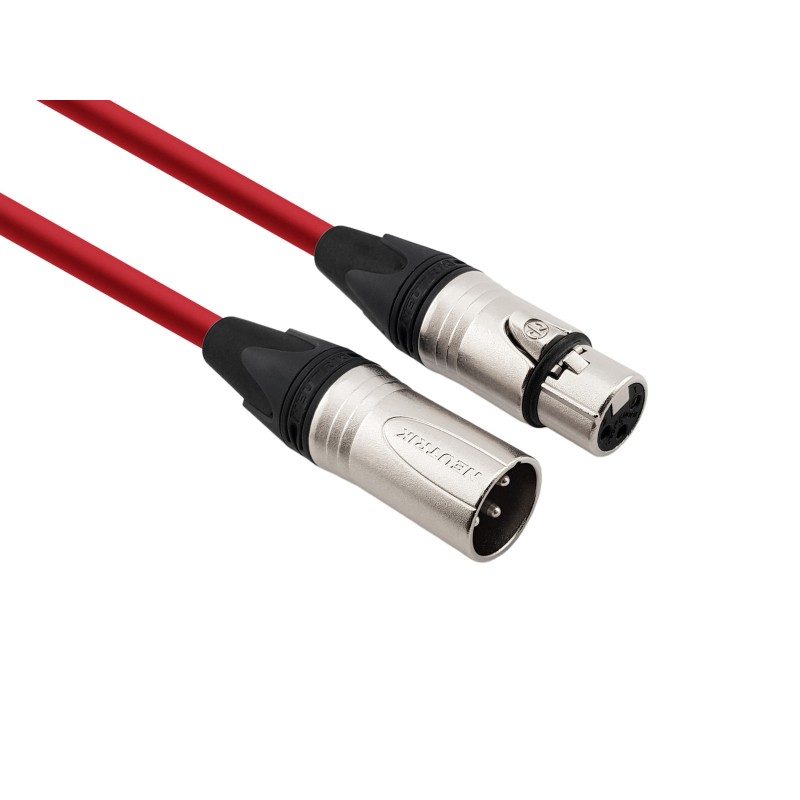

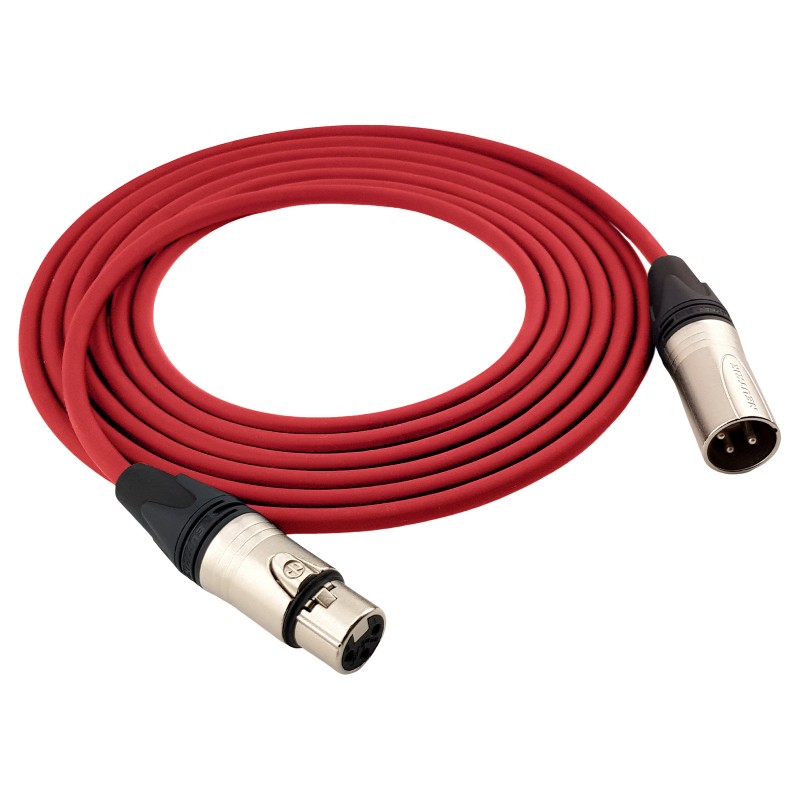

MCN1130-RED
XLR-XLR M-F 3 METER
MODEL: MCN1130-RED
MARKA: RED MUSIC No.1 Cable RED COLOR
PERSHKRIMI: FISHA ME KABELL PROFESIONAL NEUTRIK
MIKROFONI & SINJALI
Microphone Cable - XLR F / XLR M - Standard Neutrik 3 METRA
DIAMETER 6mm, Internal cable 2 x 0.23mm²
RED Cable is a high quality cable.
Made of the best materials
MAP: KLIKONI PER ADRESEN:
Kontakt: 0692088111
Email: [email protected]
More info
Specification:
Product type Microphone cable
Connector 1 XLR M (female) 3pin
Connector 2 6.3mm Stereo Jack Plug
Connector model NEUTRIK
Special features
Plugs soldered with lead-free tin with silver additive
Connectors have cable pull-out protection
Additional equipment

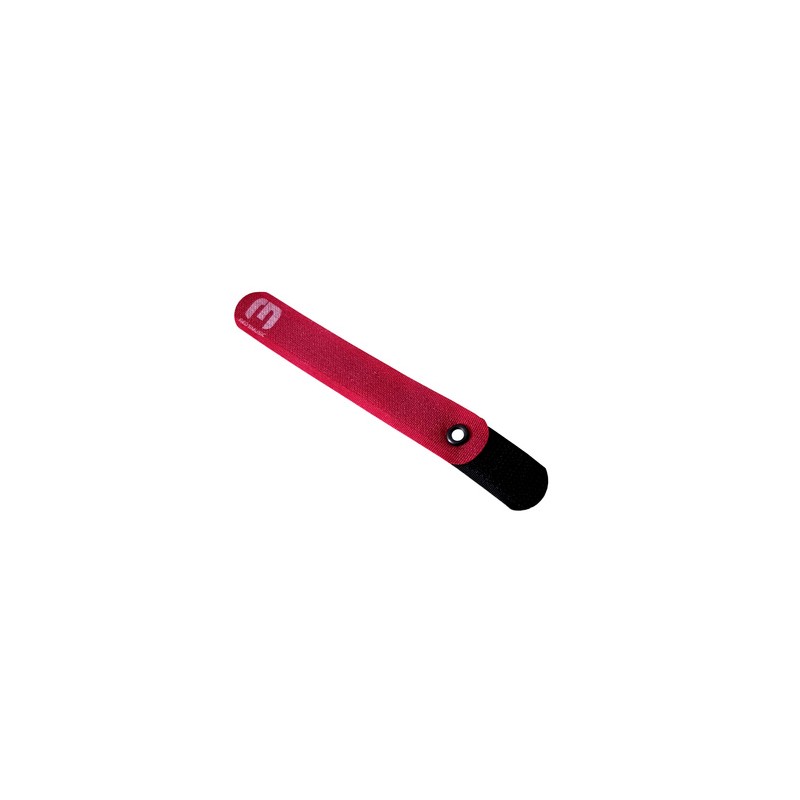

Velcro for fastening to facilitate proper transportation

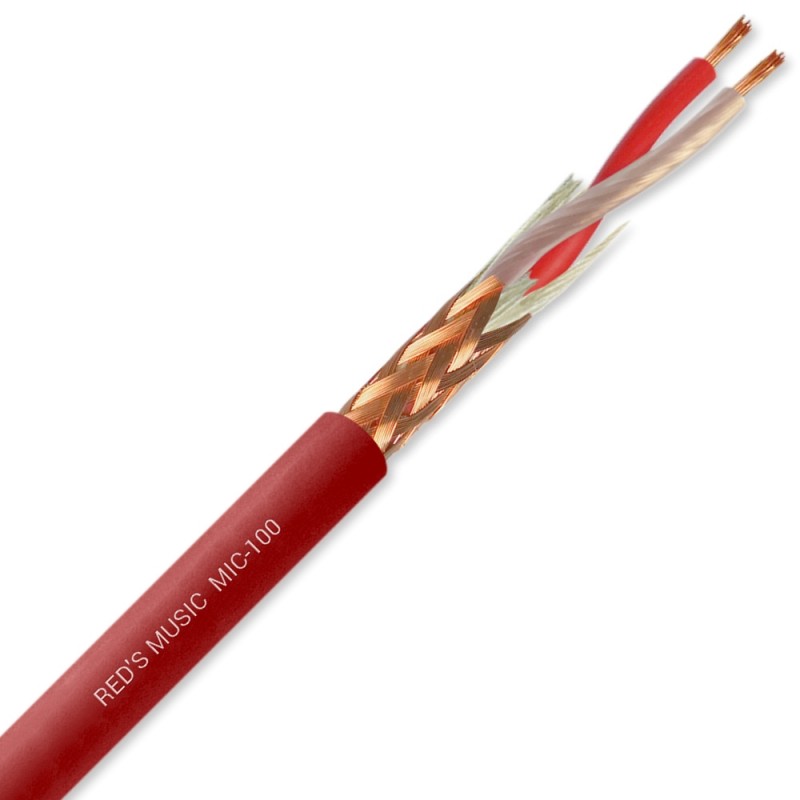

Cable construction:
Internal cable 2 x 0.23mm²
Shielding copper wire (mesh braid - coverage ≥90%)
Filling cotton
Conductor insulation
PE - transparent, red
Coating insulation PVC
Technical data of the cable used:
Cable model MIC-100
Operating temperature -25°C to 65°C (fixed installations) / -5°C to 65°C (mobile installations)
Minimum laying temperature -5°C
Capacity (1kHz)
conductor-shield: ≤130nF/km / conductor-core: ≤65nF/km
Impedance 85Ω ±5Ω
Resistance of conductors 71.5Ω/km DC
Screen resistance 18.0Ω/km DC
Insulation resistance >1.0GΩ/km
Minimum bending radius
30mm - 5xØ (Ø - outside diameter)
Outer diameter of the cable
6.0 mm
