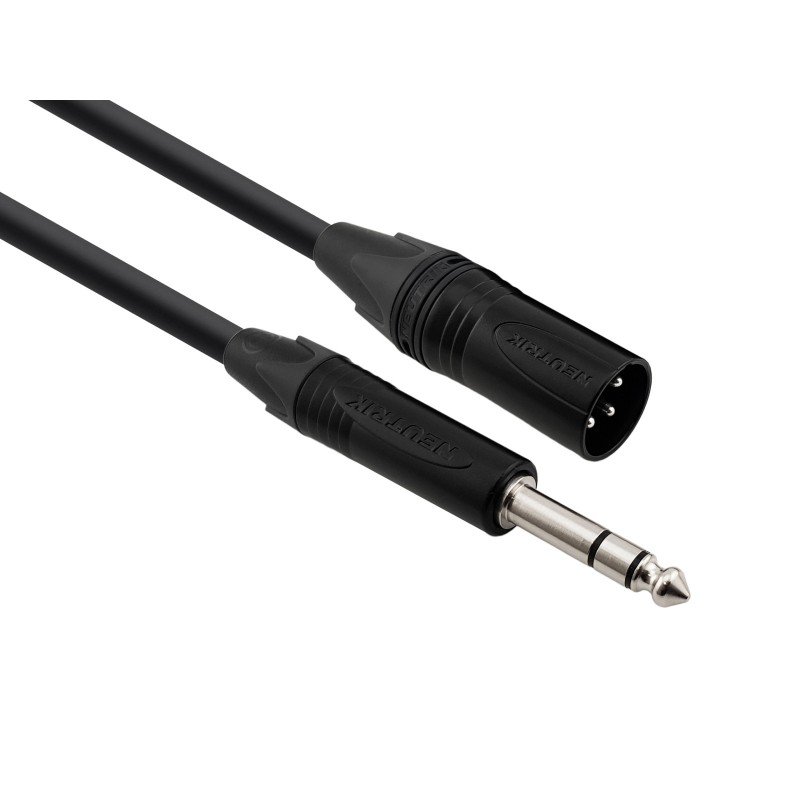

MCN2530 -3m
XLR-JACK M-M 3 METER
MODEL: MCN2530 - 3m
MARKA: RED MUSIC No.1 Cable BLACK STUDIO SERIES
PERSHKRIMI: FISHA ME KABELL PROFESIONAL NEUTRIK
Microphone Cable - JACK M / XLR M -Studio 3 METRA
DIAMETER 7mm, Internal cable 2 x 0.5mm²
RED Cable is a high quality cable.
Made of the best materials
MAP: KLIKONI PER ADRESEN:
Kontakt: 0692088111
Email: [email protected]
More info
Specification:
Product type
Microphone cable
Connector 1
XLR M (male) 3pin
Connector 2
6.3mm Stereo Jack Plug
Connector model
Neutrik NC3MXX-BAG
Neutrik NP3X-BAG
Special features
Plugs soldered with lead-free tin with silver additive
Connectors have cable pull-out protection
Additional equipment

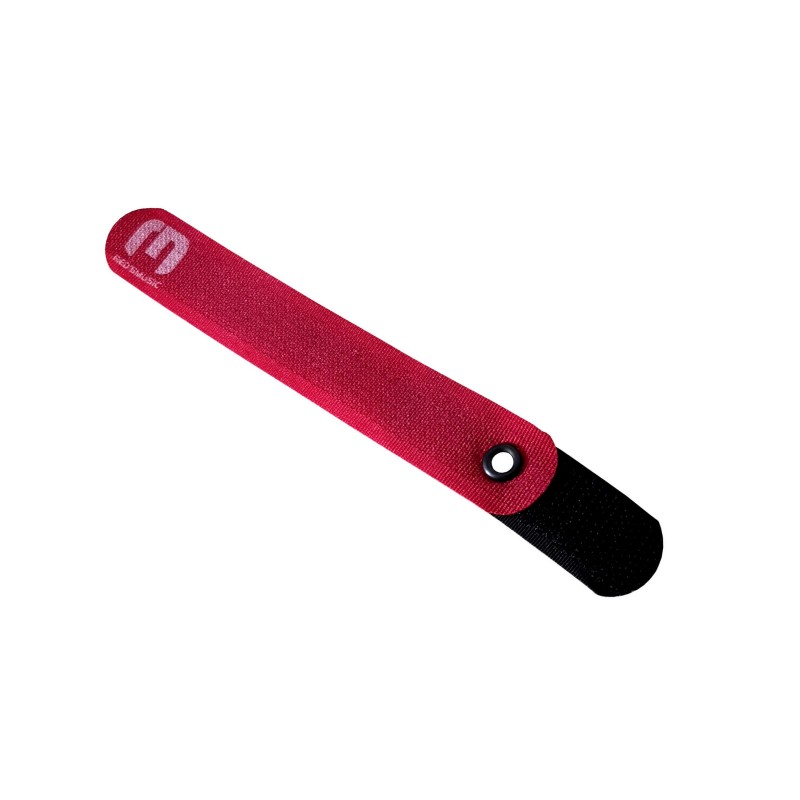

Velcro for fastening to facilitate proper transportation
Cable construction:
Internal cable
2 x 0.5mm²
Shielding
copper wire (mesh braid - coverage ≥85%)
Filling
material
Conductor insulation
PE - transparent, red
Coating insulation
PVC
Technical data of the cable used:
Cable model
MIC-101
Operating temperature
-25°C to 65°C (fixed installations) / -5°C to 65°C (mobile installations)
Minimum laying temperature
-5°C
Capacity (1kHz)
conductor-shield: ≤125nF/km / conductor-core: ≤75nF/km
Impedance
75Ω ±5Ω
Resistance of conductors
37.5Ω/km DC
Screen resistance
15.0Ω/km DC
Insulation resistance
>1.0GΩ/km
Minimum bending radius
35mm - 5xØ (Ø - outside diameter)
Outer diameter of the cable
7.0 mm
