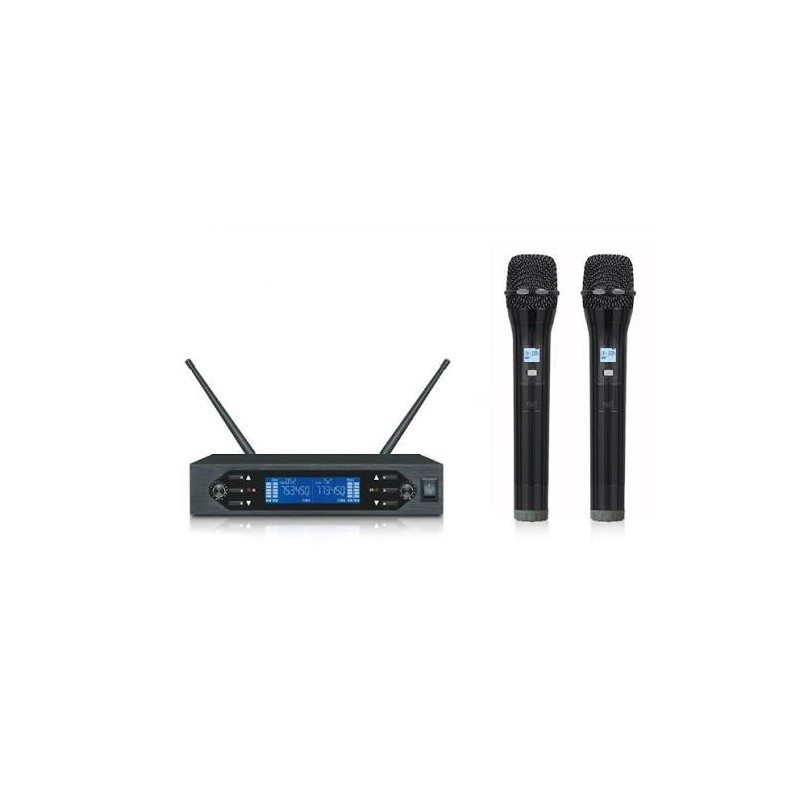

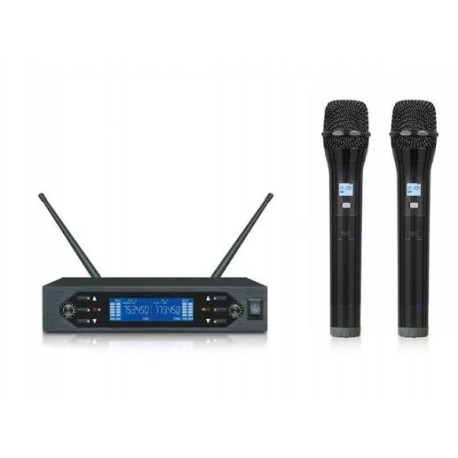

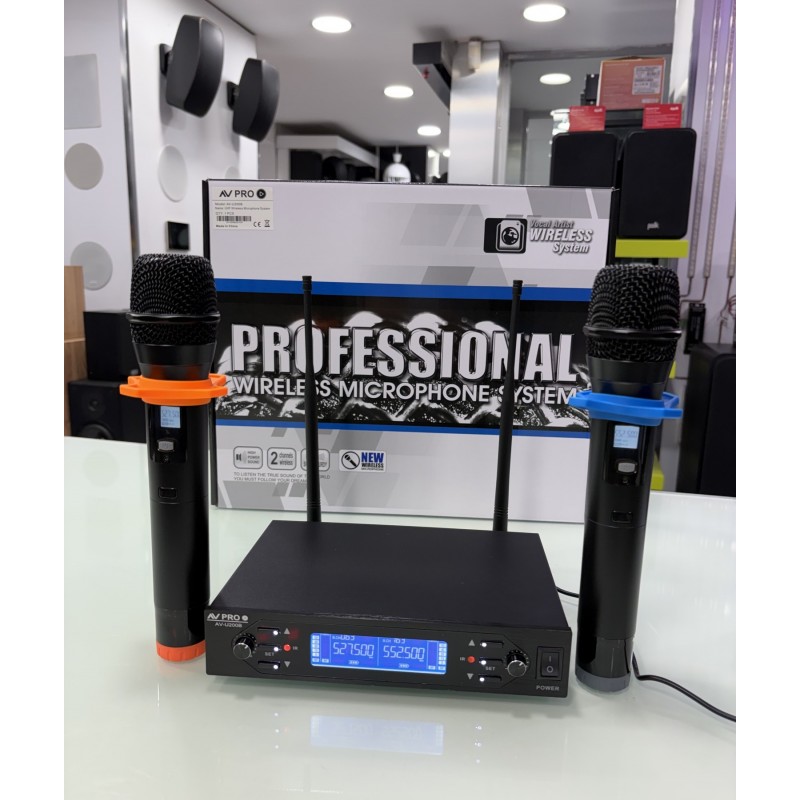

AV-U200B

Feature：

• State of art design UHF wireless microphone system of tabletop design in 1U height.
• Ideal for speech, announcement, meeting system or religious gathering and life performance use.
• Suitable for hotel, factory, school, restaurant, train station, church, mosque sound system use.
• Includes dual channel receiver with LCD.
• Two microphones working together without any interference.
• Supplied with two wireless microphones (Handheld & Bodypack) of fixed frequency.
• Each channel of 100 adjustable frequencies total of 200.
• Support more than 500 meters operation distance.
• Microphone is powered by DC3V, battery working time more than 10 hours and standby 30 hours.
• Strong damage proof design dynamic microphone with high sensitivity.
• Option: Two Channel Receiver + Two Handheld Mic

Transmitter:

• Frequency range: UHF 520-930MHz
• Frequency stability: 10ppm
• Transmit power: 10mV
• Launch distance: 100 (m)
• Harmonic suppression: 65db above
• Modulation method: FM
• The maximum modulation: 75K
• Working voltage: 3V
• Working current: 120mA
• Function display mode: LCD

Receiver:

• Frequency: 520-930MHZ
• Frequency stability: 10ppm
• Sensitivity: 13dbuv
• Linkage suppression: 65db
• Image frequency suppression: 75db
• Audio output: 200mV
• Output impedance: XLR interface: 200 Europe 1/4 connector: 1K Europe
• Signal to noise ratio: 100dB
• Distortion: <0.1%
• Frequency response: 50Hz-15 kHz
• Function display mode: LCD
• Power Supply: 12V DC
