MX-524-CE

New

View larger

Reference: MIXER PRO INSTALL

MODEL: MX-524-CE

MARKA: TASCAM

PERSHKRIMI: MIXER MATRIX PRO INSTALL PER RACK

5 CHANNEL IN 4 CHANNEL OUT

MAP: KLIKONI PER ADRESEN:

Kontakt: 0692088111

Email: [email protected]

Warning: Last items in stock!

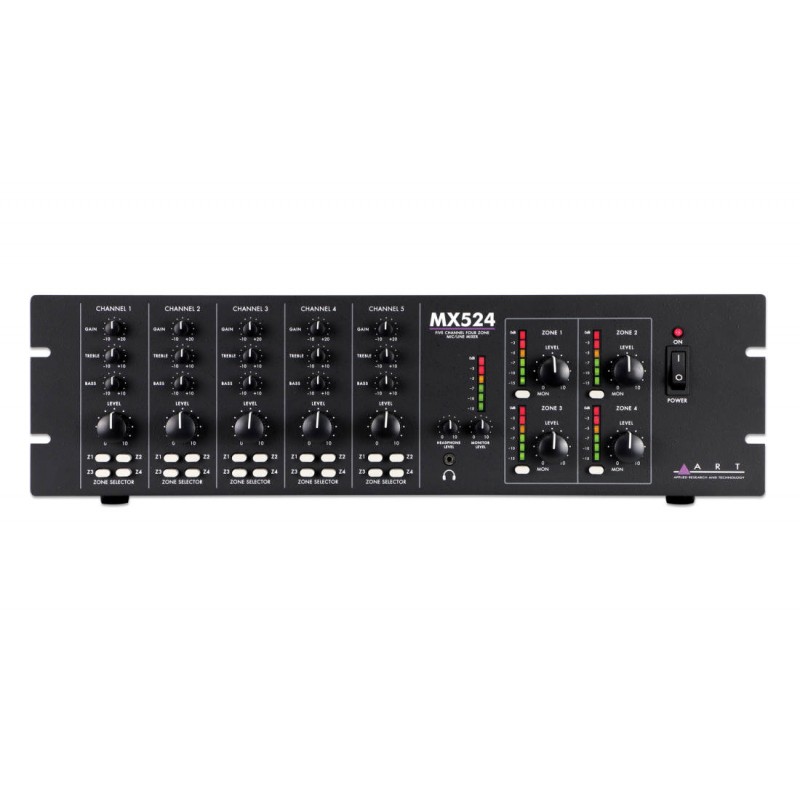

Five input channels with individual level controls using XLR/Phono jacks with master level, bass and treble controls
Balanced Mic/Line XLR inputs for channels one thru four
Full +48V low-noise phantom power for channels one thru four mic inputs
Front panel 1/8-inch stereo (TRS) mini-phone plug for Headphone monitoring
Four sets of Euro Bloc connectors for the Zone outputs
Telephone paging function
DC power back up
Separate monitor outputs
LED VU meter on all outputs

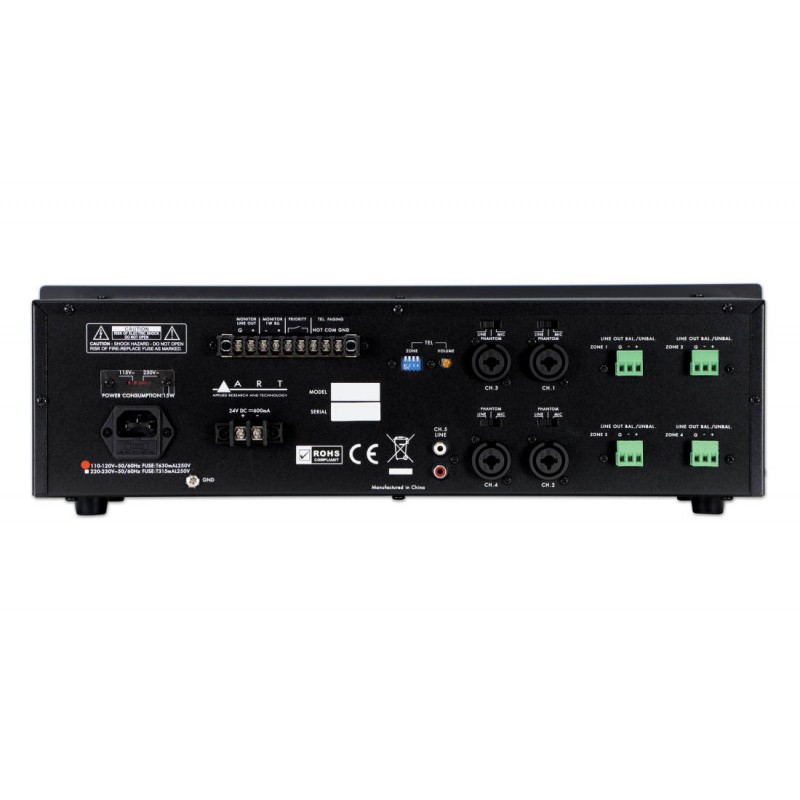

Rear mount RCA Line inputs for additional audio inputs
Rugged 3U rack-mount steel chassis with built-in power supply
Perfect for stage, studio and permanent installations

Inputs	XLR / 1/4 Combo Jacks, RCA
Outputs	Euroblock, Screw terminals
Input Impedance	Microphone input: 1.4k Ω All other inputs 10k Ω or greater
Output Impedance	Zone outputs 120 Ω Monitor Speaker output 8 Ω Monitor Line output 120 Ω
Maximum Gain	60 dB CH MIC. Input Main out (XLR, balanced) 50 dB CH MIC. Input & REC. out (unbalanced) 60 dB CH MIC. Input Mono out (unbalanced)
Frequency Response	20 Hz – 22 kHz (± 2 dBu)
Total Harmonic Distortion	<0.03% @1 kHz
Phantom Power	15 VDC
Power Requirements	110~120 VAC 50/60 Hz or 24 VDC
Dimensions (HWD)	5.1" x 19" x 7.5" (13.0 cm x 48.3 cm x 19.1 cm)
Weight	6.63 lbs. / 3.0 kg
Note	0 dBu = 0.775Vrms
