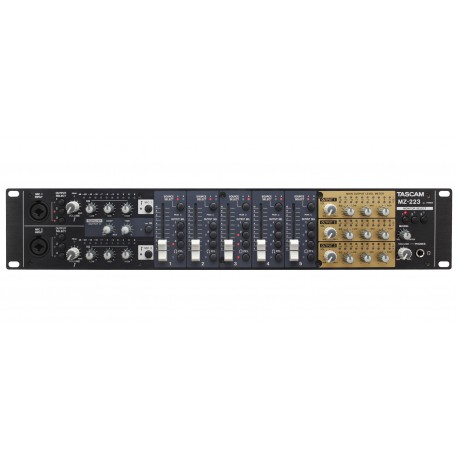

MIXER PRO INSTALL

MODEL: MZ-223

MARKA: TASCAM

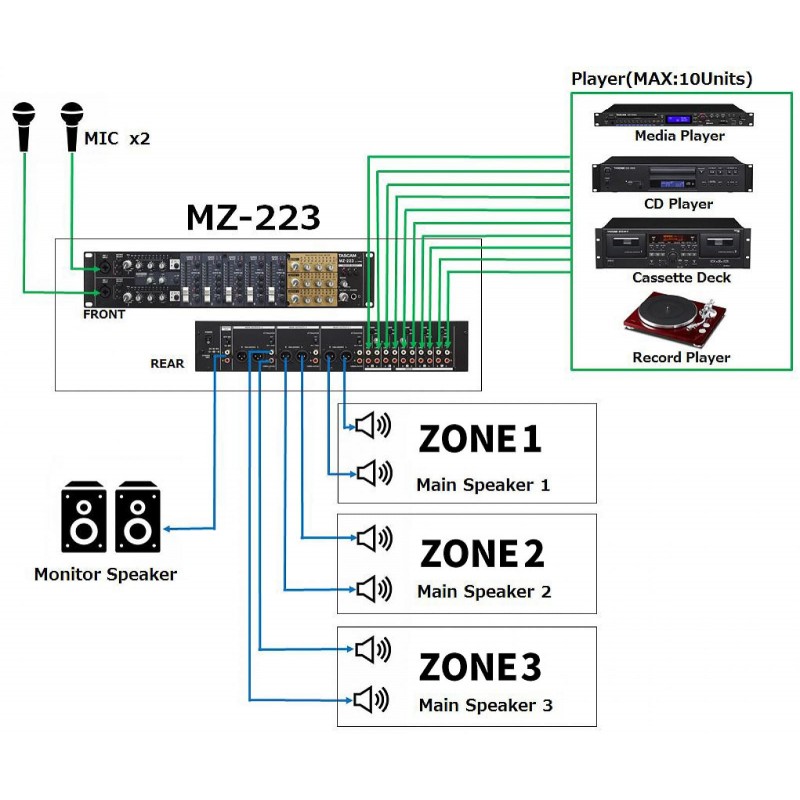

PERSHKRIMI: 3-ZONE MIXER MATRIX

PRO INSTALL PER RACK

MAP: KLIKONI PER ADRESEN:

Kontakt: 0692088111

Email: [email protected]

More details

Warning: Last items in stock!

58 000 Leke tax excl.

More info

Specifications

Audio inputs
Microphone inputs 1–2 Balanced: XLR-3-31 (1: GND, 2: HOT, 3: COLD)
Unbalanced: 6.3-mm TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
  Input impedance 33 kΩ
  Nominal input level –65 dBu (VOLUME knob at MAX)
Unbalanced: –30 dBu (VOLUME knob at MIN)
Line inputs (unbalanced) RCA pin jacks
  Nominal input level –10 dBV
  Maximum input level 10 dBV
  Input impedance 22 kΩ
Audio outputs
Main outputs (unbalanced) RCA pin jacks
  Nominal output level –10 dBV
  Maximum output level 6 dBV
  Output impedance 200 Ω
Main outputs (balanced) XLR-3-32 (1: GND, 2: HOT, 3: COLD)
  Nominal output level 4 dBu
  Maximum output level 24 dBu
  Output impedance 200 Ω
Monitor outputs RCA pin jacks
  Nominal output level –16 dBV
  Maximum output level 0 dBV
  Output impedance 200 Ω
Headphones output 6.3-mm stereo jack
  Maximum output power 50 mW + 50 mW (into 32 Ω load)
Audio performance
Frequency response 20 Hz – 20 kHz
Distortion ≤0.03%
Crosstalk 65 dB
Power supply and other specifications
Power supply Dedicated AC adapter (PS-M1524)
  Input voltage AC 100–240 V, 50/60 Hz
  Output voltage DC 15 V
  Output current 2.4 A
Power consumption 35 W
Overall dimensions (width × height × depth) 482 mm × 88 mm × 93 mm
Weight 2.5 kg
Permissible operating temperature 5–35 °C
Permissible operating humidity 25–85 %RH (at 32 °C, non-condensing)

Design and specifications subject to change without notice.
